RFID Readers (125 KHz)

125 KHz









MaxiProx Reader is ideal for installations incorporating parking control and long read range applications. The MaxiProx reader packages all the electronics in one rugged, attractive and easy-to-install housing.





MiniProx reader offers high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package.





ProxPro Proximity Card Reader combines all of the electronics usually found in two separate packages into a single, architecturally attractive enclosure that mounts to a standard single-gang electric box.



ThinLine II Proximity Card Reader provides performance and reliability with a low-profile appearance.









Flexpass Curve Line proximity readers

  • Size: Slim, Wall-switch, Mid-range

  • Read range: 5 in., 12 in.





Flexpass Wave Line proximity readers

  • Size: Slim, Wall-switch, Mid-range

  • Read range: 5 in., 12 in.





Flexpass Linear Line proximity readers

  • Size: Slim, Wall-switch, Classic

  • Read range: 5 in.





Flexpass Arch Line proximity readers

  • Size: Slim, Wall-switch, Mid-range

  • Read range: 5 in., 12 in., 28 in.



RF Logics (IDTECK)



Advanced Keypad Reader is a rugged economical keypad proximity reader.

  • Configured to work with card only, card and Personal Identification Number (PIN) or PIN only.

  • 8 bit burst Wiegand output or has a 3 x 4 matrix wireline output to the control panels.

  • Backlit keys for easy viewing at night.

  • Three color LED, digital buzzer, and allows for external buzzer or LED control.

  • Includes a universal mounting bracket for US or European gang boxes.

  • Durable and like the other Advanced ID proximity readers, it has passed the stringent UL294 extreme environmental testing.

  • 4 inch (10 cm) read range.

Advanced Long Range Reader has a new elegant looking design that mounts to walls in indoor or outdoor installations.

  • Includes a two-color LED, digital buzzer, and allows for external buzzer or LED control.

  • The wireline output is industry standard Wiegand or mag stripe output (ABA Track II) so it can connect to most control panels.

  • 28 inch (70 cm) read range.  Used in hands free situations which can deliver up to 7 feet (2.1m) of distance with the Advanced Active Card.

  • Operates from 12-24 Volts DC.

  • Has a hard military grade potting material to withstand extreme weather conditions.

Advanced Mid Range Reader has a new elegant looking design that mounts to a wall covering a double gang box.

  • Includes a two color LED, digital buzzer, and allows for external buzzer or LED control.

  • The wireline output is industry standard Wiegand or mag stripe output (ABA Track II) so it can connect to most control panels.

  • 12 inch (30 cm) read range.

  • Has a hard potting material to withstand extreme weather conditions.

Advanced Mini Reader has a compact size while having a modern design.

  • 4" (10 cm) read range and can be mounted on metal or to the wall.

  • Has a hard military grade epoxy potting so it can withstand the toughest environmental conditions.

  • Two color LED, digital buzzer, and allows for external buzzer or LED control.

  • The wireline output is industry standard Wiegand or ABA Track II so it can connect to most control panels.

Advanced Mullion Reader has slim size modern design that can be mounted on metal door frames or to a single gang box.

  • Two color LED, digital buzzer, and allows for external buzzer or LED control.

  • The wireline output is industry standard Wiegand or mag stripe output (ABA Track II) so it can connect to most control panels.

  • Elegant design matches any interior or ultramodern buildings.

  • 4 inch (10 cm) read range.

Advanced Wall Mount Reader has an elegant looking design that mounts to a wall covering a single gang box.

  • Two color LED, digital buzzer, and allows for external buzzer or LED control.

  • The wireline output is industry standard Wiegand or mag stripe output (ABA Track II) so it can connect to most control panels.

  • 4 inch (10 cm) read range.


UHF (900 Mhz)

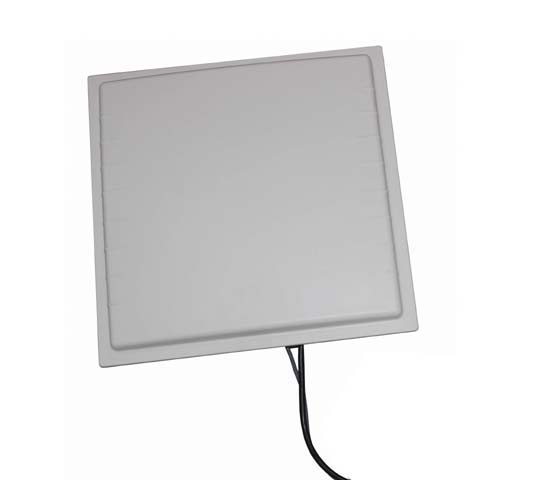

VT-30LR Medium ~ Long Range UHF Integrated Reader

EPC global UHF ISO-18000-6C(EPC G2),ISO-18000-6B Reader. Up to 30 meter read distance (varies by tag and environment).

Specifications Download


VT-30C passive tag

Passive tag overcome the big dimension and high cost that active tag has, with reliably and flexibly reading. It is based on protocol of EPC C1 G2/ISO18000-6C, reading distance can reach 20 meters for solution of personnel tracking. Standard size and packaged by ABS Material, can adapt to all kinds of application requirement, like the theme park experience, customer loyalty management, airport passenger position management, security, access control and attendance.

Specifications Download


VT-20C passive tag

Passive tag overcome the big dimension and high cost that active tag has, with reliably and flexibly reading. It is based on pro- tocol of EPC C1 G2/ISO18000-6C, reading distance can reach 20 meters for solution of personnel tracking. Standard size and packaged by ABS Material, can adapt to all kinds of application requirement, like the theme park experience, customer loyalty management, airport passenger position management, securi- ty, access control and attendance.

Specifications Download


VT-30G Glass Paper tag

Glass tag overcome the big dimension and high cost that active tag has, with reliably and flexibly reading. It is based on protocol of EPC C1 G2/ISO18000-6C.

Specifications Download
