Proximity Locks and Controllers

Prox-eLock Single Door Solutions

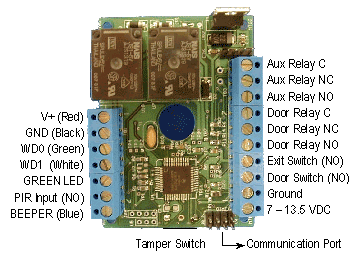

Prox-eLock Proximity lock controller

  • Recognizes over 4 billion unique codes from standard Wiegand readers (including HID and Indala)

  • User-defined password card

  • Shunt alarm

  • Tamper switch and Door-forced alarm

  • PIR Input

  • Anti-passback and Door-ajar features

  • Door-exit switch and Door-open sensor switch

  • Programmable door-open and ajar durations

  • Holds 2000 users











RFID Reader and Lock - STAR PDL100 is an intelligent Proximity Door Lock operates with 8 x AA size Battery and door opens with proximity cards or keytags.

  • Proximity Door Lock with Built-In Proximity Reader

  • Gold (G) or Silver (S) Color

  • Up to 128 users

  • Battery Operation (30,000 opening)

  • Low Battery Alarm

  • Two Color LED and Internal Buzzer

  • Add/Delete, Erase Button

  • Card Data retains without Battery

  • 5 sec. Door Open Time (Fixed)











Biometric & Proximity Single Door Access Controller - STAR FINGER-007 is an intelligent Single Door Access Controller based on dual 8 bit microprocessors to meet extremely high security level and cost effective access control market demand. It includes built-in proximity reader and finger print module and for high reliability as well as easy operation.

  • Dual function for Access Control and Time & Attendance

  • Built-in 4˝(10cm) RF reader and fingerprint module

  • Standalone/Network communication via RS232/RS422 (max. 32ch)

  • RF only, RF+Finger, PIN+Finger, RF+PIN+Finger

  • 720 Finger prints holders / 5,200 Event buffers (2,000 and 4,500 finger prints optional)

  • 10 Time schedules and 10 Holiday schedules

  • Dual Tamper switches
